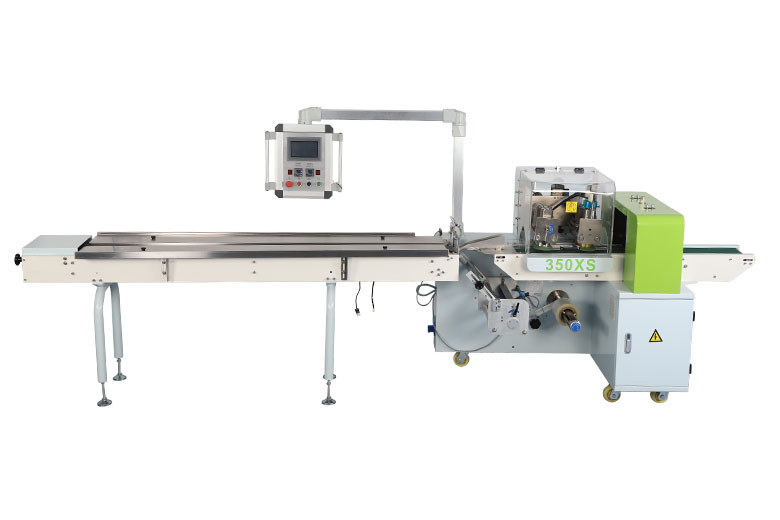

CB-350XS Automatic Servo Flow Packaging Machine
产品介绍
Installation
1)Use two M10x25 bolt、M10 nut to fix the tail frame and the main machine.
2)The chain must through the chain wheel, lock two end with chain lock when install the chain. Usage and features
a) This machine suitable to be used in solid ®ular products.
Food: instant noodle, biscuit, bread, chocolate, jelly, candy, popsicle, etc
Industrial products: adhesive tape, soap, leechdom, box, tray, hotel article etc.
Hotel article for use: paper、knife and fork、brush for shoe leather、toothbrush and toothpaste.

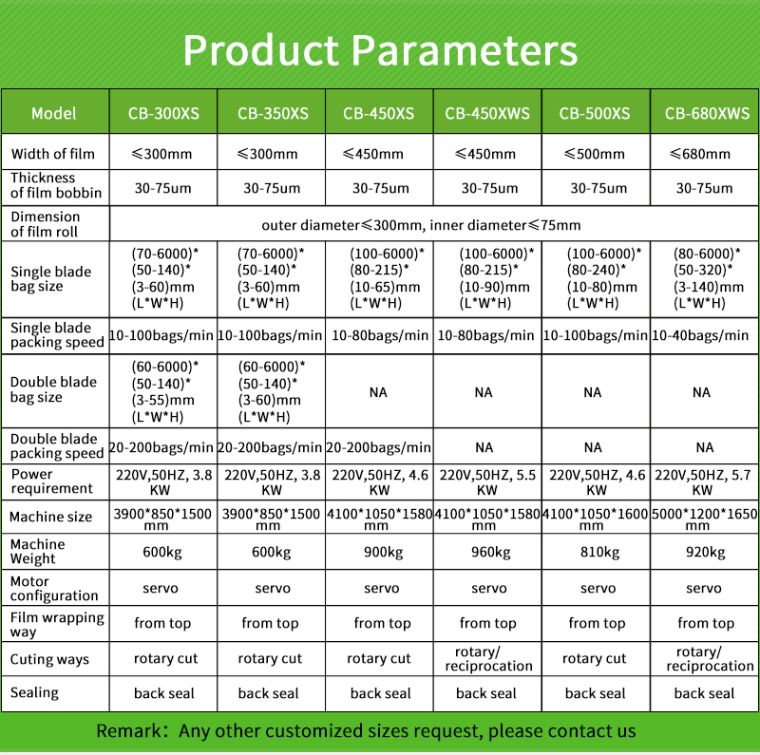

Steel tube aluminum tube extrusion and so on six meters of strip products Outstanding FeaturesProduct specification technical parameter Output | Up to 200 products per minute
Up to 40 m/min film speed
Product and film characteristic may affect machine output | Size Range | Package cut-off length | 50-6000mm | Product width | max.140mm | Product height | max.60mm | Packaging Material Reel | Reel diameter | ≤300mm | Core diameter | ≤75mm | Packaging material width | max.300mm | Weight | max. 25KG | Connections | Voltage | 220V,50HZ | Power usage | 3KW | Machine weight | 600kg | Machine dimensions | L3900mm*W850mm*H1500mm | Blade cut type | Rotary cutter | Motor configuration | Dual servo | Optional Device | date printer, auto feeder, gas charger, etc. |
| |
Guangzhou Weibo Packing Machine
