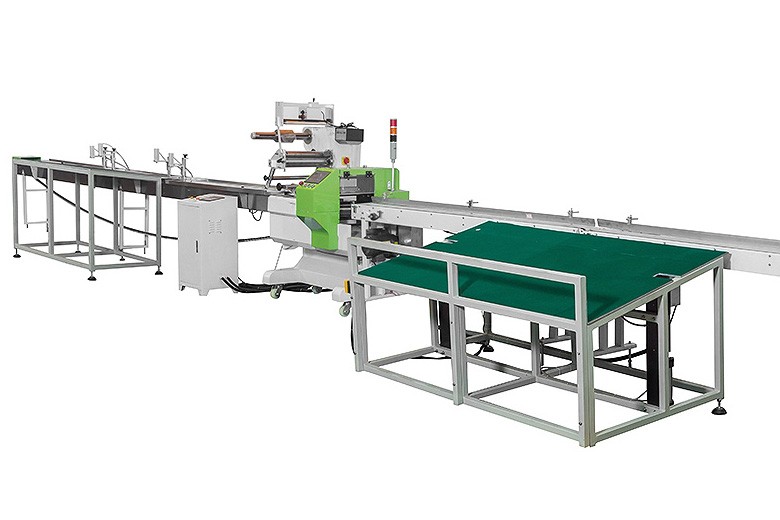

Full Automatic Tubes Pipes Flow Packing Machine CB-300SG
产品介绍
DescriptionAdditional cylinder device for auto-feeding Bracket for assembly product pre-wrapped and collect finished packaged products 3 independent motors (Conveyor, film plastic and end sealing) Motion controller for quick response to various commands Accurate positioning Digital temperature control Food grade SUS304 contact parts Touch screen 7”
Outstanding FeaturesAll control in one touch screen, user-friendly and easy operation Product cutting prevention, machine will stop once cutter cuts the produc Memory function, can store 99 groups of package parameters (product position, packing speed, bag length) Block board for separate the finished products into batchs Product permit length as long as 6 meters
Specification| Model | CB-300SG | | Film width | ≤300mm | | Film thickness | 30-80um | | Dimension of film bobbin | Outer diameter≤300mm Inner diameter≥75mm | | Single knife bag size | L(60-6000)xW(50-140)xH(3-50)mm | | Single knife packing speed | 20-200bags/min | | Power | 220V/380V,50HZ/60HZ,4.65KW | | Outer dimension | Accroding to the real product length | | Machine weight | 1000KG | | Motor configuration | Full servo | | Film bobbin position | Upper | | Blade cut type | Rotary | | Fix device | Air cylinder auto feeder
Finished product collecting bracket |
| |
Guangzhou Weibo Packing Machine
