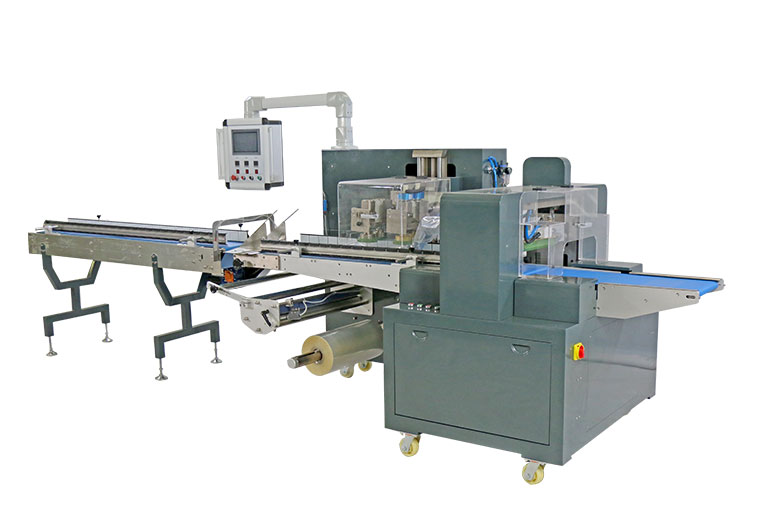

Full Servo Box Motion Flow Packing Machines CB-680XWS
产品介绍
Description5 independent motors (Conveyor, cutter, plastic film moving, movement of center sealing part, movement of end sealing part) Motion controller for quick response to various commands Accurate positioning Independent temperature control for center sealing and end sealing Food grade SS304 contact parts
Outstanding FeaturesAll control in one movable control panel, user-friendly and easy operation Box-motion cutter for high products packing and ensure the compact package Empty bag prevention, no product no bag Product cutting prevention, machine will stop once cutter cuts the product Memory function, can store 99 groups of package parameters (product position, packing speed, bag length) Independent control for movement of center sealing part and end sealing part, to meet different product height Have alternative choose for flexible length system no pusher and fix length with guide pusher Pure PE film can be use on the machine
Specification| Model | CB-680XWS | | Film width | ≤680mm | | Film thickness | 30-80um | | Dimension of film bobbin | Outer diameter≤300mm Inner diameter≥75mm | | Single knife bag size | L(60-6000)xW(25-320)xH(10-120)mm | | Single knife packing speed | 10-40bags/min | | Power | 220V,50HZ,5.2KW | | Outer dimension | L5000xW1200xH1650mm | | Machine weight | 1080KG | | Motor configuration | Full servo | | Film bobbin position | Down | | Blade cut type | Box motion / Reciprocating |
| |
Guangzhou Weibo Packing Machine
