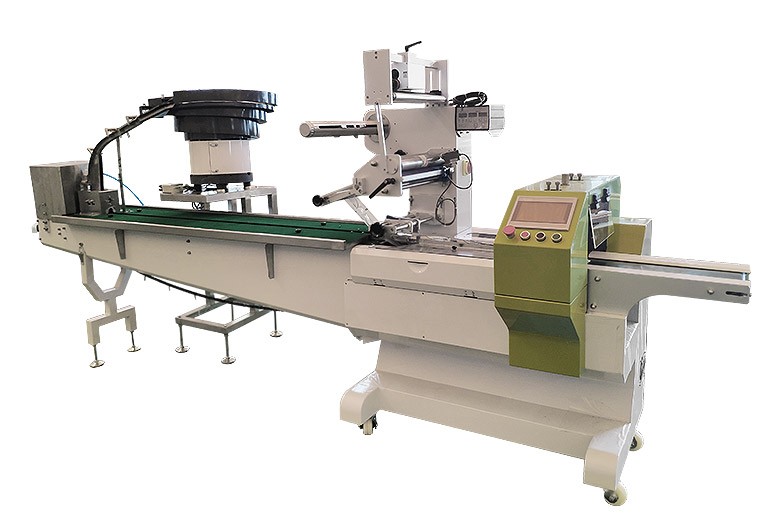

Full Servo Syringe Flow Packing machine CB-300SZ

产品介绍

Using vibration tray to point material automatically, it can reduce production cost and improve efficiency
Segregating material, feeding,printing,venting and packaging in one time, and the automatic degree is high
The key parts of machine is adopt of stainless structure,in accordance with food QS and medicine GMP healthy requirements
Using a new generation of servo control technology, with simple operation and it can store historical records for next time using, reduce the time of replacing products
High speed automatic packaging,prevent the occurrence of empty bags and save package film

Specification

Model	CB-300SZ
Film width	≤300mm
Film thickness	30-80um
Dimension of film bobbin	Outer diameter≤300mm Inner diameter≥75mm
Single knife bag size	L(60-6000)xW(50-140)xH(3-50)mm
Single knife packing speed	20-200bags/min
Power	220V/380V,50HZ/60HZ,4.65KW
Outer dimension	Accroding to the real product length
Machine weight	1000KG
Motor configuration	Full servo
Film bobbin position	Upper
Blade cut type	Rotary
Vibration tray	Size customize
