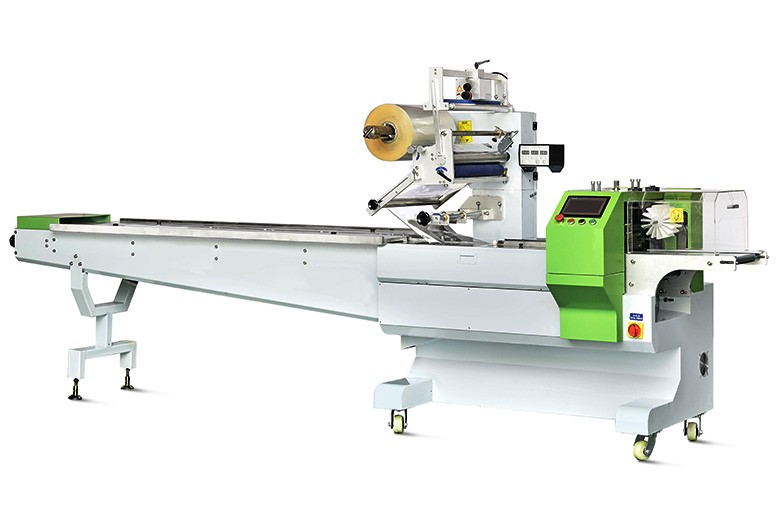

Full Servo Flow Packaging Machine CB-450S/500S
产品介绍
Description3 independent motors (conveyor, center sealing and end sealing) Motion controller for quick response to various commands Accurate positioning Digital temperature control Food grade SS304 contact parts 7″ Color Touch screen
Outstanding FeaturesAll control in one touch screen, user-friendly and easy operation Empty bag prevention, no product no bag Product cutting prevention, machine will stop once cutter cuts the product Memory function, can store 99 groups of package parameters (product position, packing speed, bag length) No limit for product length
SpecificationModel | CB-450S | CB-500S | Film width | ≤450mm | ≤500mm | Film thickness | 30-80um | Dimension of film bobbin | Outer diameter≤300mm Inner diameter≥75mm | Single knife bag size | L(60-6000)×W(25-215)×H(10-70)mm | L(60-6000)×W(50-240)×H(10-80)mm | Single knife packing speed | 10-100 bags per min | Outer dimension | L4100×W1050×H1500mm | Power | 220v, 50hz, 4.6kw | Machine weight | 810kg | Motor configuration | Full servo | Film bobbin position | Upper | Blade cut type | Rotary |
| |
Guangzhou Weibo Packing Machine
