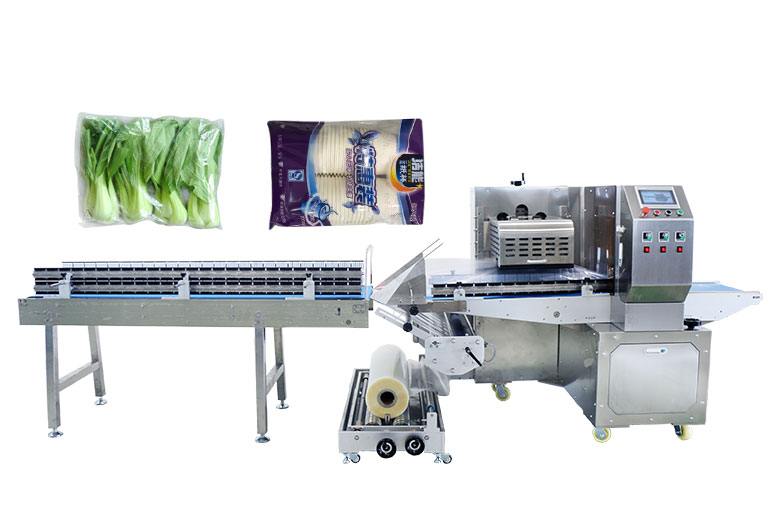

CB-800XS Multi-functional large packaging secondary packaging machine

产品介绍
  • Product name: horizontal packing machine

    model: CB-800XS
    Automatic packing machine
    Using smart servo technology

    Standard features:
    independent motors (Conveyor, center sealing), easy for maintenance
    Motion controller for quick response to various commands
    Accurate positioning
    Independent temperature control for center sealing and end sealing
    Food grade contact parts
    Touch screen 7”

    Special features:
    All control in one control panel, user-friendly and easy operation
    Up and down cutter for high products packing and ensure the compact package
    Empty bag prevention, no product no bag
    No limit for product length
    Independent control for movement of center sealing part, to meet different product height

  • Outstanding Features

    Output

    Up to 15-20 products per minute
    Product and film characteristic may affect machine output

    Size Range

    Package cut-off length

    60-6000mm

    Product width

    Max.390mm

    Product height

    Max.200mm

    Packaging Material Reel

    Reel diameter

    ≤300mm

    Core diameter

    ≤75mm

    Packaging material width

    Max.800mm

    Connections

    Voltage

    220V,50HZ

    Power usage

    5.2KW

    Machine weight

    900kg

    Machine dimensions

    L4200mm*W1400mm*H1450mm

    Blade cut type

    Intermittent(Up and down)

    Motor configuration

    Double servos

    Optional Device

    date printer, etc.








Guangzhou Weibo Packing Machine
