CCLD冲击加速度计8339
产品介绍

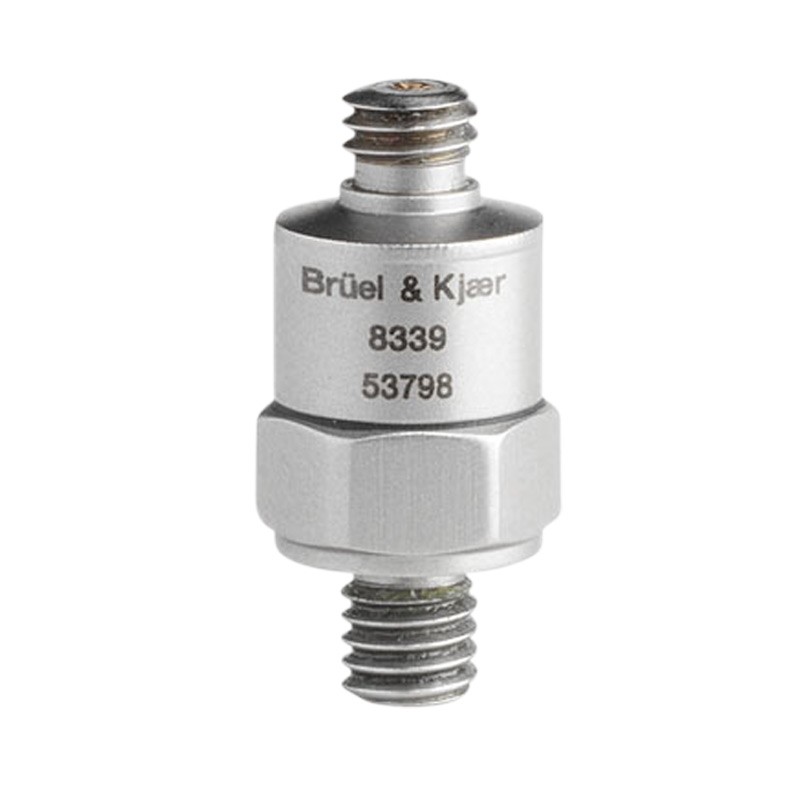

8339 CCLD冲击加速度计 8339型、8339-001型和8339-002型是低阻抗压电式压缩加速度计，用于高级值的的连续振动、机械冲击和爆炸冲击测量。 使用场景 技术参数 | 型号 | 8339 | | Freq. range | 1 – 20000 Hz | | Temperature | -51 – 121 ℃ | Weight | 5.8 gram | | Sensitivity | 0.025 mV/ms^-2 | | Residual Noise Level in Spec Freq Range (rms) | 150000 µg | Maximum Operational Level (peak) | 20000 g | Connector | 10-32 UNF | Mounting | Stud | | Clip/Stud/Screw included | Integral 10-32 UNF | | Output | CCLD | Unigain | No | Triaxial | No | TEDS | No | Applications | Shock | | Unit | mV | | Resonance frequency | 130 kHz | | Maximum Shock Level (± peak) | 80000 g |
| |
