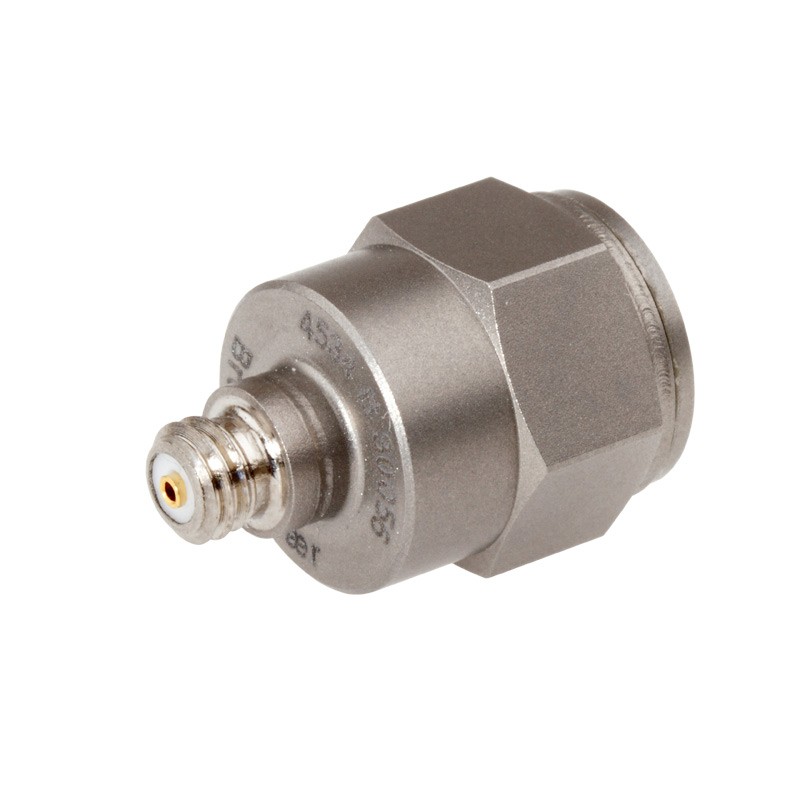

4534-B-002 CCLD加速度计
4534-B-002型是一种通用型CCLD加速度计，带TEDS。它具有宽频率范围、低噪声和低环境因素敏感性的特点。
使用场景
4534-B-002型有一个重量轻、坚固、气密密封的钛外壳，一个绝缘底座和一个适用于许多环境条件的10-32 UNF螺纹安装孔。它有一个顶部安装的同轴连接头。
技术参数
| 型号 | 4534-B-002 |
| Freq. range | 0.2 – 12800 Hz |
| Temperature | -55 – 125 ℃ |
Weight | 8.6 gram |
| Sensitivity | 50 mV/ms^-2 |
| Residual Noise Level in Spec Freq Range (rms) | 100 µg |
Maximum Operational Level (peak) | 14 g |
Connector | 10-32 UNF |
Mounting | 10-32 UNF |
| Accessory Included | 10-32 UNF mounting stud |
| Clip/Stud/Screw included | yes |
| Output | CCLD |
Unigain | No |
Triaxial | No |
TEDS | Yes |
Applications | Vibration Test |
| Resonance frequency | 38 kHz |
| Maximum Shock Level (± peak) | 1000 g |
