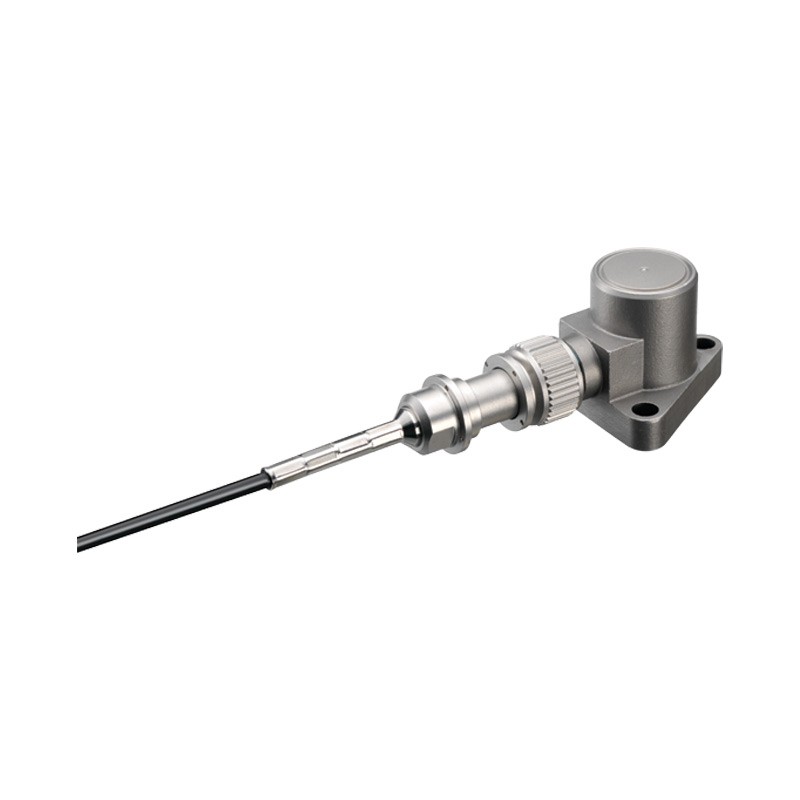

8324-G、8324-G-100 压电式加速度计
8324-G型和8324-G-001型工业加速度计设计用于在恶劣环境中进行测量。
使用场景
飞行测试应用
用高温环境下的测量
健康应用监测系统
气轮机
技术参数
| 型号 | 8324-G、8324-G-100 |
| Freq. range | 1 – 9000 Hz |
| Temperature | -196 – 250 ℃ |
Weight | 91 gram |
| Sensitivity | 1 mV/ms^-2 |
| Residual Noise Level in Spec Freq Range (rms) | 0.4 µg |
Maximum Operational Level (peak) | 2000 g |
Connector | BNC |
Mounting | 3 x M4 bolts |
| Clip/Stud/Screw included | 3 x M4 Allen screws |
| Output | CCLD |
Unigain | No |
Triaxial | No |
TEDS | Yes |
Applications | Vibration Test |
| Resonance frequency | 30 kHz |
| Maximum Shock Level (± peak) | 2000 g |
