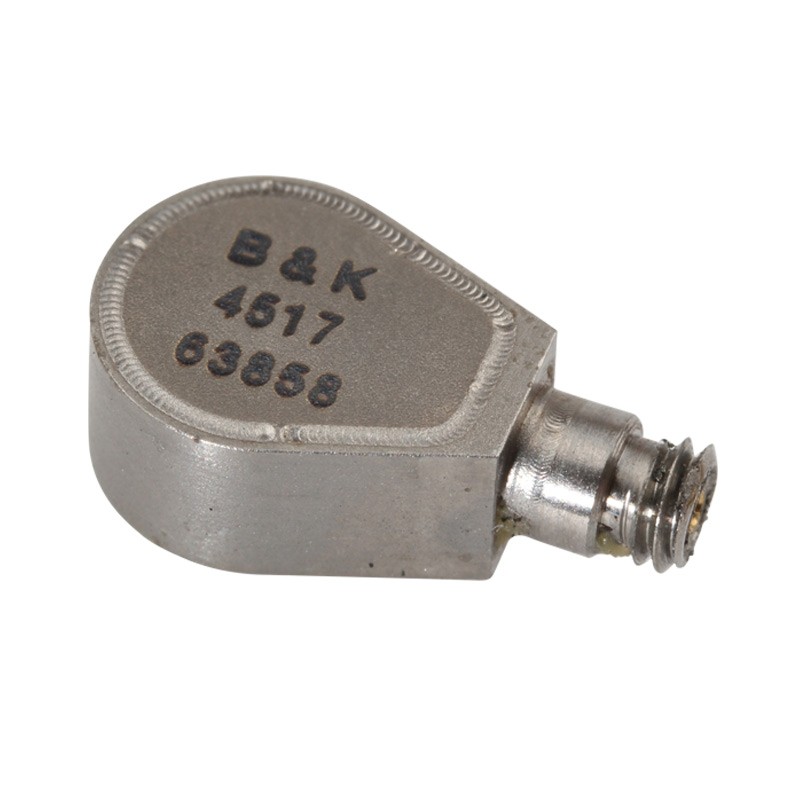

4517 微型泪珠式CCLD加速度计
4517型和4517-002型是侧面连接的压电式切向加速度计。它们重量轻，非常适用于精细结构和较小物体的测量。传感器具有一个小型3-56 UNF接头，配有一根特殊的可拆卸式低噪声电缆，末端为10-32 UNF的阴接头。
使用场景
4517型和4517-002型都是通过胶粘剂安装在物体上的。附带拆卸扳手，以便拆卸传感器。
技术参数
| 型号 | 4517 |
| Freq. range | 1 – 20000 Hz |
Temperature | -55 – 121 ℃ |
Weight | 0.65 gram |
Sensitivity | 1.02 mV/ms^-2 |
Residual Noise Level in Spec Freq Range (rms) | 6000 µg |
| Maximum Operational Level (peak) | 500 g |
Connector | 3-56 Thread |
Mounting | Adhesive |
| Accessory Included | AO0638 |
Clip/Stud/Screw included | QA0230 |
Output | CCLD |
Unigain | No |
Triaxial | No |
TEDS | No |
| Applications | Miniature, Vibration Test |
| Unit | mV |
Resonance frequency | 80 kHz |
| Maximum Shock Level (± peak) | 5000 g |
