微型CCLD加速度计4516
产品介绍

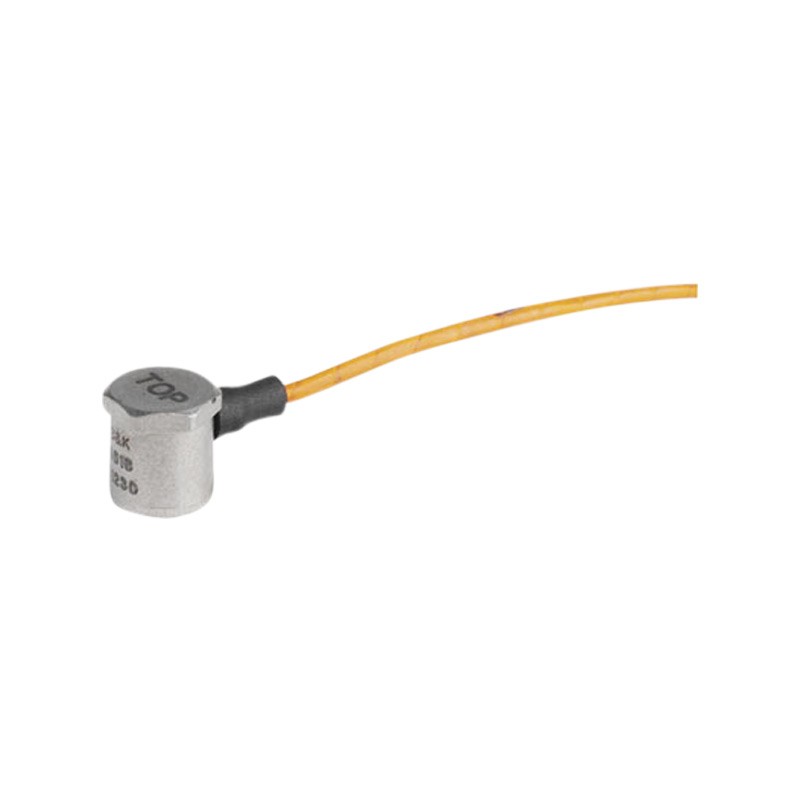

4516 微型CCLD加速度计 4516型是一种带集成电子装置的压电式切向加速度计。传感器具有一根带10-32接头的低噪声集成电缆。通过胶粘剂安装在物体上。 使用场景 技术参数 | 型号 | 4516 | | Freq. range | 1 – 20000 Hz | Temperature | -51 – 121 ℃ | Weight | 1.5 gram | Sensitivity | 1.02 mV/ms^-2 | Residual Noise Level in Spec Freq Range (rms) | 6000 µg | | Maximum Operational Level (peak) | 500 g | Connector | 10-32 UNF Female Connector | Mounting | Adhesive | | Accessory Included | Integral Cable | Clip/Stud/Screw included | None | Output | CCLD | Unigain | No | Triaxial | No | TEDS | Yes | | Applications | Miniature | | Unit | mV | Resonance frequency | 40 kHz | | Maximum Shock Level (± peak) | 1500 g |
| |
Hottinger Brüel & Kjær公司
电话: 021 6113 3674
