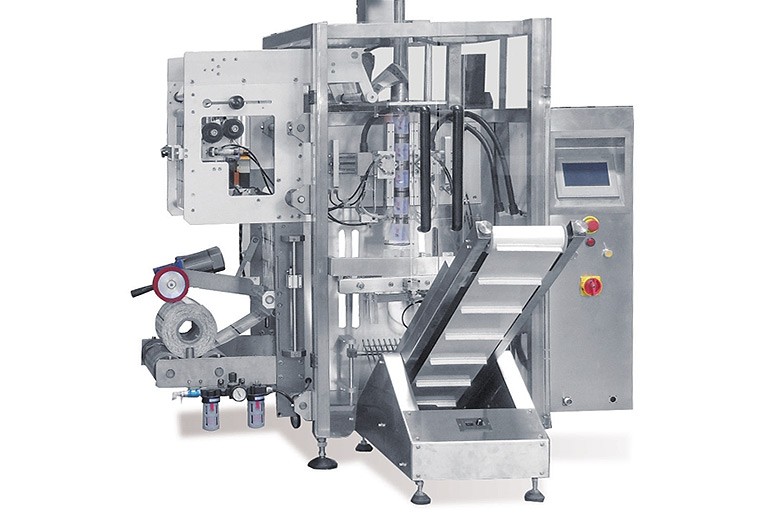

VFFS Machine Four Side Seal Bag Series CBF1-420/520/680

产品介绍

Description

  • 4-side seale is a particularly qualitative and cost-effective packaging option.

  • Design is customized to customer requirements and product-specifically, even with this type of pouch.

  • High efficiency of our pouch packaging machines is shown by a perfect result with an extremely low reject rate.

  • More uniform appearance and greater product protection can be achieved with the 4 side seal pouch.

  • Enormous efficiency and the low material loss creates economical and ecological packaging.

Outstanding Features

  • Packing material uses film roll directly instead of premade bag, decrease the package cost and make the packing process simpler

  • Can add the zip-lock insert device , zip-lock design is good for bag preservation

  • Easy tear notch, convenient for opening bag

  • film pulling by servo motor, film position accurate and moving smoothly

  • Controlled by PLC microcomputer , working stable and easy to operate

Specification

ModelCBF1-420CBF1-520CBF1-680
Max width of roll film420mm520mm720mm
Max Bag width 210mm260mm360mm
Max Bag length300mm400mm480mm
Packing speed5-60bags (according to single bag weight)
Measuring range150-1200ml3000ml6000ml
Packing material many kinds of composite film
(OPP/CPP,OPP/PE,PET/PE,NY/PE etc.)
or pure PE film
Air consumption ≥0.65MPa
Power voltage220V/380V, 50HZ/60HZ,1 phase/3 phase
Power2KW2.5KW3.5KW
Net weight 550KGS650KGS720KGS
Metering device Multihead weigher/Volumetric cup filler/Auger doser/Pump


Guangzhou Weibo Packing Machine
