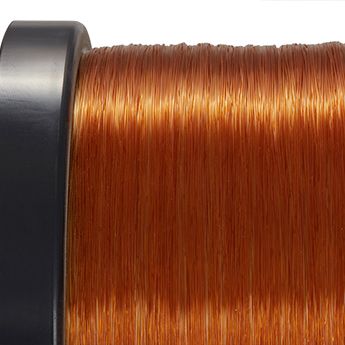

聚苯硫醚,单纤维, PPS, 0.5mm直径
产品介绍
| 订货号 | 包装规格 | | Length (Round) | | 726-823-75 | 10 m | | 058-174-27 | 20 m | | 725-205-23 | 50 m | | 652-231-65 | 100 m | | 137-134-98 | 200 m |
产品参数 | Diameter[直径] | 0.5mm | | Grade[等级] | Unfilled | | Length[长度] | 10 m - 200 m | | Transparency[透明度] | Transparent Pale Amber | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 1.350 | | Flammability | V-0 | | Water absorption - over 24 hours ( % ) | 0.020 | | Thermal Properties(热性能) | | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 4.000 | | Heat-deflection temperature - 1.8MPa ( C ) | 104.0 | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 0.30 | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 23.00 / | | Upper working temperature ( C ) | 170 | | Chemical Resistance(耐化学性) | | Acids - concentrated | Poor | | Acids - dilute | Fair | | Electrical Properties(电气特性) | | Surface resistivity ( Ohm/sq ) | 1x10¹⁶ | | Volume resistivity ( Ohmcm ) | 1x10¹³ |
其他参数 公差
| |
