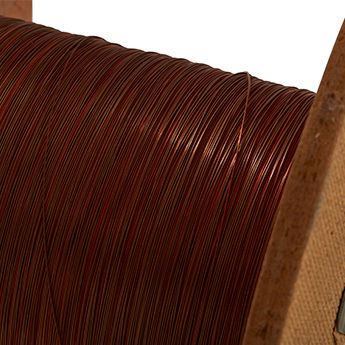

磁性铜,线, Cu99.96Fe0.04, 0.5mm直径
产品介绍
This material consists of a copper matrix with evenly spaced iron filaments around the circumference. Filament diameter 0.1 microns. | 订货号 | 包装规格 | | Length (Round) | | 520-913-88 | 1m | | 114-237-08 | 2m | | 279-632-09 | 5m | | 954-007-27 | 10m | | 250-909-16 | 20m | | 363-647-43 | 50m |
产品参数 | Diameter[直径] | 0.5mm | | Length[长度] | 1m - 50m | | Number Of Filaments[长丝数量] | 16 | | Mechanical Properties(机械性能) | | Elongation at break ( % ) | 1.1 | | Tensile strength ( MPa ) | 539.00 | | Thermal Properties(热性能) | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 401.00 @23℃ | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 8.960 |
其他参数 公差
| |
Goodfellow（顾特服）
