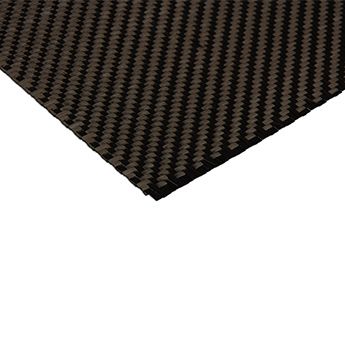

碳,织物, C, 0.4mm厚
产品介绍
We also supply Carbon fibre/polyaramid blend fabrics. | 订货号 | 包装规格 | | Sizes | | 843-663-33 | 150mm x 150mm |
产品参数 | 50x50 | | Thickness[厚度] | 0.4mm | | Warp Yarn[经纱] | 400(T) | | Weave[织法] | 2x2 Twill | | Weft Yarn[纬纱] | 400(T) | | Weight[重量] | 406g.m⁻² | | Thermal Properties(热性能) | | Coefficient of thermal expansion ( x10⁻⁶ K⁻¹ ) | 0.600 - 4.300 @0-100℃ | | Melting point ( C ) | 3650.00 | | Specific heat ( J K⁻¹ kg⁻¹ ) | 712.0 @25℃ | | Thermal conductivity ( W m⁻¹ K⁻¹ ) | 80.00 - 240.00 @0-100℃ | | Mechanical Properties(机械性能) | | Bulk modulus ( GPa ) ( Diamond ) | 542.0 | | Bulk modulus ( GPa ) ( Graphite ) | 33.0 | | Hardness - Mohs ( Diamond ) | 10.00 | | Hardness - Mohs ( Graphite ) | 0.50 - 1.00 | | Material condition | Diamond | | Material condition | Graphite | | Tensile modulus ( GPa ) ( Graphite ) | 4.80 | | Atomic Properties(原子属性) | | Atomic number | 6 | | Atomic weight ( amu ) | 12.01100 | | Crystal structure | Hexagonal/Diamond | | Electronic structure | He2s²2p² | | Ionisation potential ( No./eV ) | 6 / 490 | | Ionisation potential ( No./eV ) | 4 / 64.5 | | Ionisation potential ( No./eV ) | 1 / 11.26 | | Ionisation potential ( No./eV ) | 3 / 47.9 | | Ionisation potential ( No./eV ) | 2 / 24.38 | | Ionisation potential ( No./eV ) | 5 / 392 | | Natural isotope distribution ( Mass No./% ) | 12 / 98.89 | | Natural isotope distribution ( Mass No./% ) | 13 / 1.11 | | Photo-electric work function ( eV ) | 4.80 | | Thermal neutron absorption cross-section ( Barns ) | 0.0034 | | Valences shown | 2 , 3, 4 | | Physical Properties(物理性质) | | Boiling point ( C ) | 5000 | | Density ( g cm⁻³ ) | 2.250 @20℃ | | Electrical Properties(电气特性) | | Electrical resistivity ( μOhmcm ) | 1375@0℃ | | Thermal emf against Pt (cold 0C - hot 100C) ( mV ) | 0.70 |
其他参数 公差 | 纱支数 | | ±10% |
|---|
| 特克斯数 | | ±10% |
|---|
| 长度 | <100mm | ±5mm |
|---|
| ≥100mm | ±5% | | 厚度 | | ±25% |
|---|
| 长度 1 | <100mm | ±5mm |
|---|
| ≥100mm | ±5% | | 长度 2 | <100mm | ±5mm |
|---|
| ≥100mm | ±5% |
| |
