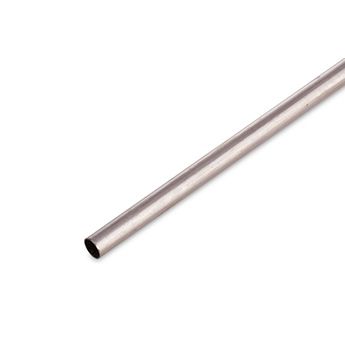

金钯,管, Au75Pd25, 2.7mm ID, 3mm OD, As Drawn Temper
产品介绍
| 订货号 | 包装规格 | | Length (Round) | | 893-486-08 | 25mm | | 638-671-39 | 30mm | | 320-896-09 | 40mm | | 039-649-89 | 50mm | | 861-625-31 | 100mm | | 396-214-20 | 150mm | | 213-422-82 | 200mm | | 460-874-82 | 300mm | | 497-409-39 | 500mm | | 595-130-77 | 1000mm |
产品参数 | Inside Diameter[内部直径] | 2.7mm | | Length[长度] | 25mm - 1000mm | | Outside Diameter[外部直径] | 3mm | | Temper[状态] | As Drawn | | Wall Thickness[壁厚] | 0.15mm | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 16.000 | | Thermal Properties(热性能) | | Melting point ( C ) | 1410.00 |
其他参数 公差 | 外部直径 | ≤2mm | ±0.05mm |
|---|
| 聚合物 | ±10% | | 陶瓷 | ±10% | |
| ≤5mm | ±0.1mm | | 聚合物 | ±10% | | 陶瓷 | ±10% | |
| >5mm | ±5% | | 聚合物 | ±10% | | 陶瓷 | ±10% | |
| 壁厚 | | ±10% |
|---|
| 聚合物 | ±20% | | 陶瓷 | ±20% | |
| 长度 | <100mm | ±1mm |
|---|
| ≥100mm | +5% / -1% |
| |
