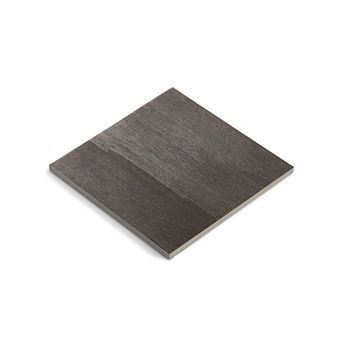

铝铜金属基复合材料,片, Al77.9SiC17.8Cu3.3Mg1.2Mn0.4, 2mm厚
产品介绍
Very limited stock available. We cannot guarantee this material will be re-stocked. | 订货号 | 包装规格 | | Sizes | | 818-332-49 | 45mm x 50mm | | 631-819-64 | 50mm x 50mm | | 077-740-27 | 50mm x 97mm | | 407-464-27 | 52mm x 100mm |
产品参数 | Grade[等级] | Metal Matrix Composite | | Reinforced With[增强] | Silicon Carbide Particles | | Thickness[厚度] | 2mm | | Mechanical Properties(机械性能) | | Elongation at break ( % ) | 6.0 | | Tensile modulus ( GPa ) | 100.00 | | Tensile strength - longitudinal ( MPa ) | 610 | | Volume fraction of SiC ( % ) | 17 | | Yield strength ( MPa ) | 400.0 | | Physical Properties(物理性质) | | Density ( g cm⁻³ ) | 2.850 |
其他参数 公差 | 长度 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 直径 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 厚度 | | ±10% |
|---|
| 陶瓷 | ±20% | | 复合材料 | ±20% | | 聚合物 | ±20% | | 长度 1 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% | | 长度 2 | <100mm | ±1mm |
|---|
| ≥100mm | +2% / -1% |
| |
Goodfellow（顾特服）
