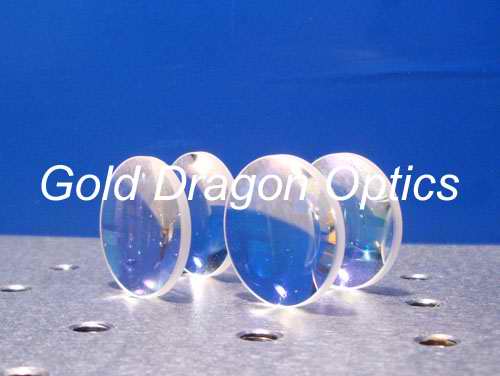

K9双凸球面透镜
| 型号: | GD-11B | | 品牌: | 金龙光电 | | 参考价格: | 10 | | 交货期: | 面议 | | 产地: | 吉林长春 | | 仪器产地: | 国产其他激光产品 |
产品介绍
K9双凸球面透镜材 料:H-K9L 设计波长:632.8nm 焦距公差:±1% 外形公差:+0.0/-0.1mm 厚度公差:±0.1mm 面 型:λ/4@632.8nm 光 洁 度:40-20 偏 心:<3' 有效孔径:>90% 倒 边:<0.2×45° 镀 膜:多层增透膜 A:350-650nm B:650-1050nm C:1050-1580nm  | 点击下载产品目录 |

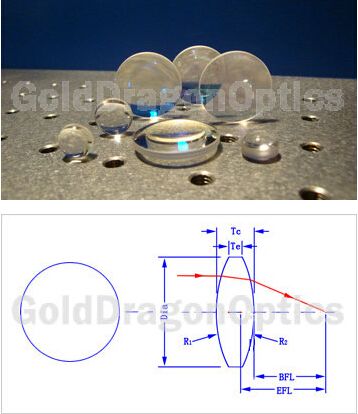

K9双凸球面透镜 (尺寸及镀膜可按用户需求定制)单位(mm) | 编号(NO.) | 焦距(EFL) | 直径(Dia) | R1=R2 | 中心厚(Tc) | 边厚(Te) | 后焦距(BFL) | | 11B1157R | 10.00 | 6.00 | 9.88 | 2.40 | 1.50 | 9.17 | | 11B1406R | 12.00 | 6.00 | 11.96 | 2.30 | 1.50 | 11.22 | | 11B1987R | 15.00 | 6.00 | 15.09 | 2.10 | 1.50 | 14.29 | | 11B1198R | 30.00 | 6.00 | 30.60 | 1.80 | 1.50 | 29.40 | | 11B1494R | 12.00 | 9.00 | 11.72 | 3.60 | 1.80 | 10.75 | | 11B1212R | 20.00 | 9.00 | 20.12 | 2.80 | 1.80 | 19.05 | | 11B1092R | 15.00 | 12.70 | 14.61 | 4.70 | 1.80 | 13.36 | | 11B1450R | 20.00 | 12.70 | 19.92 | 3.90 | 1.80 | 18.67 | | 11B1014R | 25.00 | 12.70 | 25.16 | 3.40 | 1.80 | 23.85 | | 11B1258R | 30.00 | 12.70 | 30.37 | 3.10 | 1.80 | 28.96 | | 11B1378R | 40.00 | 12.70 | 40.73 | 2.80 | 1.80 | 39.07 | | 11B1844R | 50.00 | 12.70 | 51.06 | 2.60 | 1.80 | 49.13 | | 11B1187R | 100.00 | 12.70 | 102.64 | 2.20 | 1.80 | 99.27 | | 11B1761R | 25.40 | 25.40 | 24.53 | 9.00 | 1.90 | 22.23 | | 编号(NO.) | 焦距(EFL) | 直径(Dia) | R1=R2 | 中心厚(Tc) | 边厚(Te) | 后焦距(BFL) | | 11B1757R | 30.00 | 25.40 | 29.54 | 7.70 | 2.00 | 27.34 | | 11B1811R | 35.00 | 25.40 | 34.86 | 6.80 | 2.20 | 32.68 | | 11B1027R | 40.00 | 25.40 | 40.14 | 6.10 | 2.00 | 37.93 | | 11B1471R | 50.00 | 25.40 | 50.61 | 5.20 | 2.00 | 48.25 | | 11B1596R | 60.00 | 25.40 | 61.00 | 4.70 | 2.00 | 58.43 | | 11B1901R | 75.00 | 25.40 | 76.56 | 4.10 | 2.00 | 73.63 | | 11B1676R | 100.00 | 25.40 | 102.40 | 3.60 | 2.00 | 98.81 | | 11B1904R | 125.00 | 25.40 | 128.21 | 3.30 | 2.00 | 123.91 | | 11B1437R | 150.00 | 25.40 | 154.00 | 3.10 | 2.00 | 148.97 | | 11B1294R | 175.00 | 25.40 | 179.79 | 2.90 | 2.00 | 174.04 | | 11B1945R | 200.00 | 25.40 | 205.56 | 2.80 | 2.00 | 199.07 | | 11B1056R | 250.00 | 25.40 | 257.10 | 2.60 | 2.00 | 249.14 | | 11B1779R | 300.00 | 25.40 | 308.63 | 2.50 | 2.00 | 299.17 | | 11B1391R | 400.00 | 25.40 | 411.66 | 2.40 | 2.00 | 399.21 | | 11B1869R | 500.00 | 25.40 | 514.70 | 2.30 | 2.00 | 499.24 | | 编号(NO.) | 焦距(EFL) | 直径(Dia) | R1=R2 | 中心厚(Tc) | 边厚(Te) | 后焦距(BFL) | | 11B1475R | 750.00 | 25.40 | 772.26 | 2.20 | 2.00 | 749.27 | | 11B1409R | 1000.00 | 25.40 | 1029.81 | 2.20 | 2.00 | 999.27 | | 11B1723R | 60.00 | 50.80 | 59.26 | 14.40 | 3.00 | 55.04 | | 11B1309R | 75.00 | 50.80 | 75.20 | 11.80 | 3.00 | 71.00 | | 11B1630R | 100.00 | 50.80 | 101.38 | 9.50 | 3.00 | 96.81 | | 11B1106R | 125.00 | 50.80 | 127.38 | 8.10 | 3.00 | 122.30 | | 11B1374R | 150.00 | 50.80 | 153.29 | 7.20 | 3.00 | 147.60 | | 11B1607R | 175.00 | 50.80 | 179.15 | 6.60 | 3.00 | 172.81 | | 11B1199R | 200.00 | 50.80 | 204.98 | 6.20 | 3.00 | 197.94 | | 11B1889R | 250.00 | 50.80 | 256.61 | 5.50 | 3.00 | 248.18 | | 11B1917R | 300.00 | 50.80 | 308.19 | 5.10 | 3.00 | 298.31 | | 11B1862R | 400.00 | 50.80 | 411.29 | 4.60 | 3.00 | 398.48 | | 11B1909R | 500.00 | 50.80 | 514.36 | 4.30 | 3.00 | 498.58 | | 11B1274R | 750.00 | 50.80 | 771.99 | 3.80 | 3.00 | 748.75 | | 11B1859R | 1000.00 | 50.80 | 1029.57 | 3.60 | 3.00 | 998.81 |
| |
长春市金龙光电科技有限责任公司
手机: 13756185872
电话: 0431-80812835
联系人: 徐晓明
邮编: 130000
地址: 长春市高新区越达科技产业园17#-2
