LVDT位移传感器8739
产品介绍

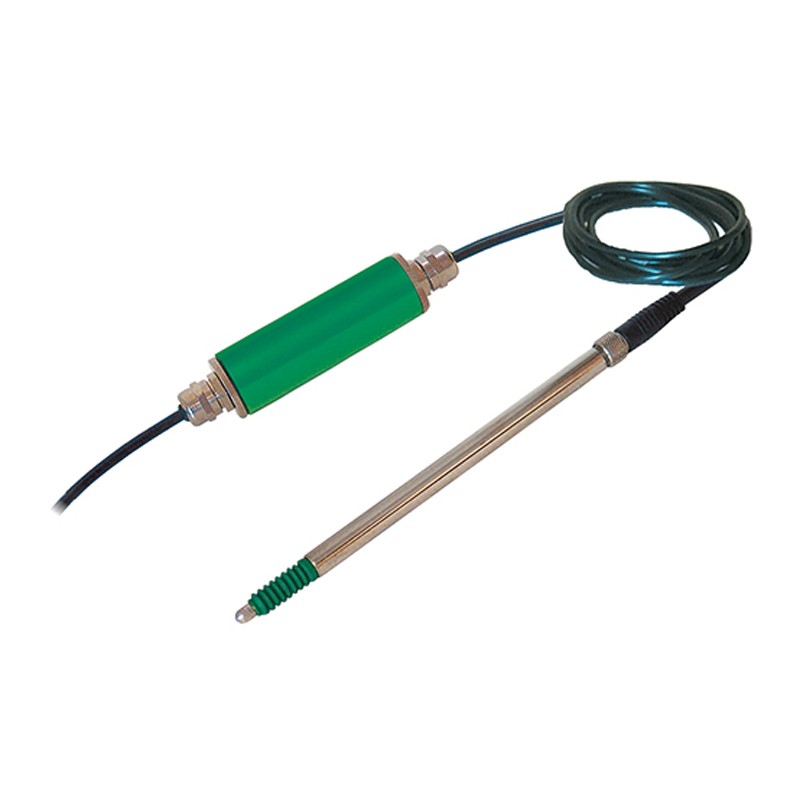

8739LVDT位移传感器 小型传感器，直径仅为8 mm，可安装在受限制的结构中，防震和耐磨，内置IN-LINE放大器或USB接口，用于直接测量位移和间接测量可转换机械值 技术参数 型号 | 8739 | 量程范围 | 0...1mm 0...2mm 0...5mm 0...10mm 0...25mm (不带复位弹簧) | 信号输出类型 | 0...10V 0...5V ±5V 4...20mA 10...0V 5...0V USB | 保护等级 | | 工作温度 | | 激励供电电压 | | 复位弹簧 | | 具体特征 | |
一般 Order Code | Measuring Range | Dimensions [mm] | Cut-Off Frequency [Hz] | Tip Force at Full Scale max.[N] | Weight [g] | L | A | B | H | 8739-5001-V501 | 0 ...1 mm | 103 | 97.5 | 15.5 | 4 | 100 | 1.2 | 25 | 8739-5002-V501 | 0 ...2 mm | 103 | 97.5 | 15.5 | 4 | 100 | 1.5 | 25 | 8739-5005-V501 | 0 ...5 mm | 140 | 130 | 23 | 7 | 100 | 2.3 | 25 | 8739-5010-V501 | 0 ...10 mm | 146 | 140 | 27 | 12 | 100 | 2.4 | 25 | 8739-5025-V501 | 0 ...25 mm driving rod without return spring with sliding rings made of teflon | 100 | 0 | 25 |
Order Code | Measuring Range | Sensitivity | Sensor Excitation Voltage [V] | Operation Frequency [kHz] | Calibrator Resistor [kΩ] | 8739-5001-V000 | 0 ... ± 0.5 mm | 106 mV/V /mm | 2 | 5 | 10 | 8739-5002-V000 | 0 ... ± 1 mm | 106 mV/V /mm | 2 | 5 | 10 | 8739-5005-V000 | 0 ... ± 2.5 mm | 62 mV/V /mm | 2 | 5 | 10 |
| |
