直流偏流测试治具SMD型元件FX-DB0001
产品介绍

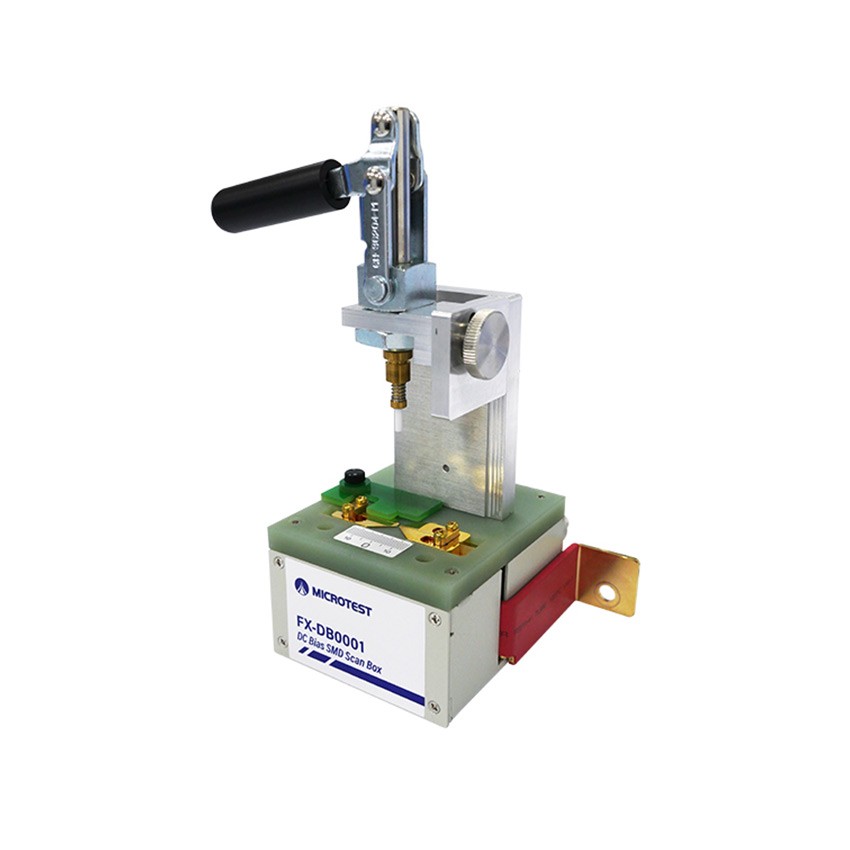

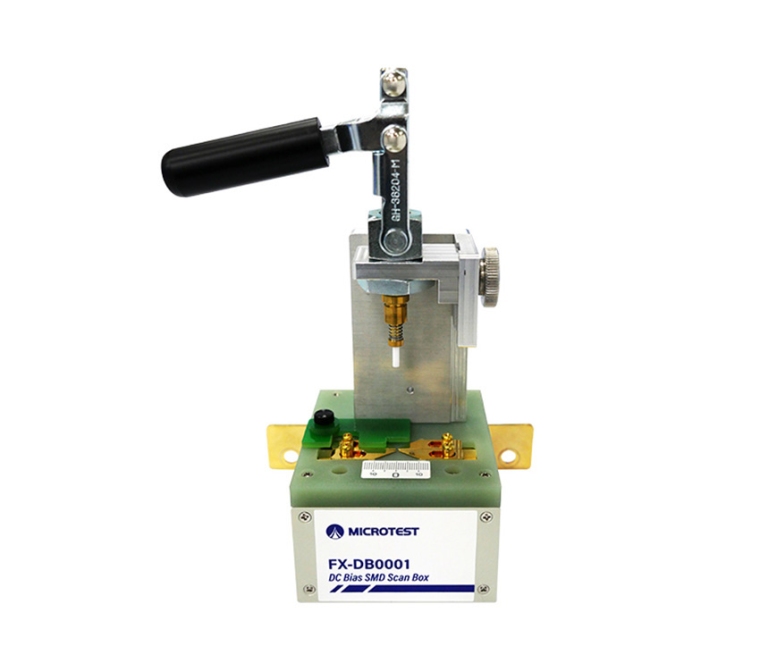

FX-DB0001 直流偏流测试治具 SMD型元件

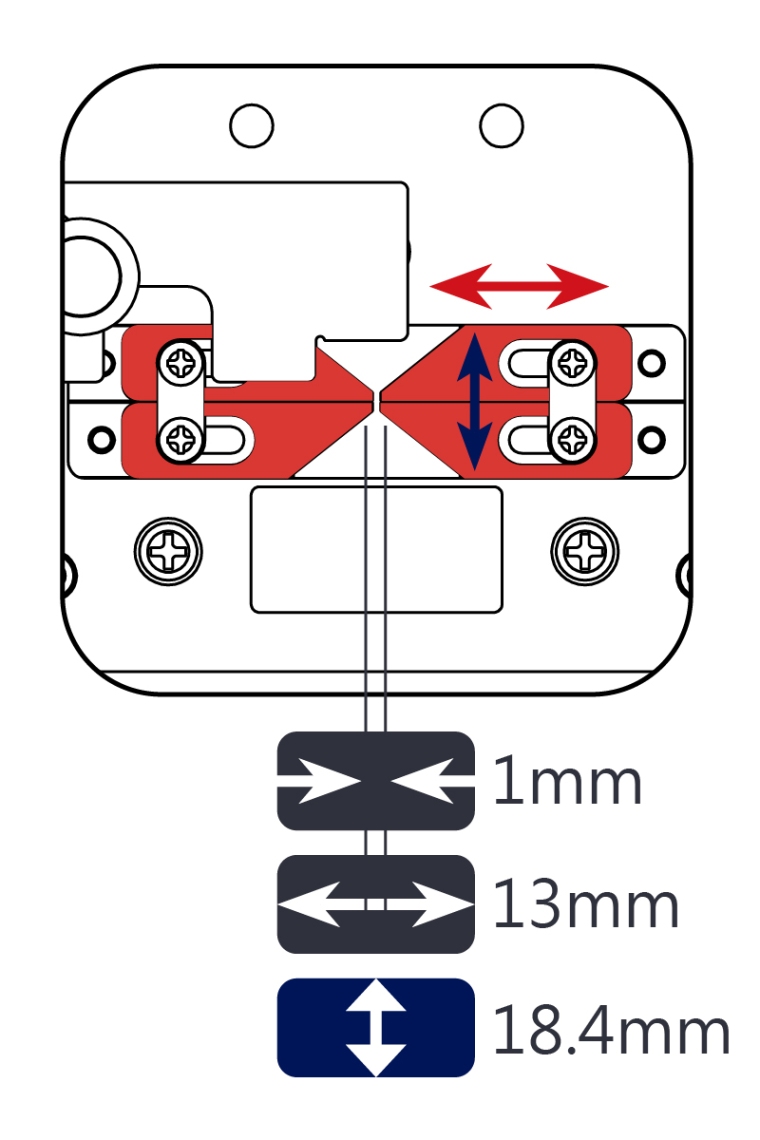

应用测量 功率电感、共模电感、线圈 技术参数 FX-DB0001 | Frequency | 100Hz～10MHz | Max. Current | 120A Before Outputting Current ▲ Please assess the cross-sectional area of the DUT when setting the current | Terminal Connector | 4-Terminal Pair, BNC | DUT Connection | 4-Terminal | DUT Size | 2.5 x 2.0mm ～ 7.4 x 5.1mm | Dimensions (approx.) | 178x221x135mm (W/H/D) | Weight (approx.) | 1.32kg | Operating Temperature | 10℃ ～ 40℃ | Applicable Models | 6632+Series / 6632S+Series /6350+Series |
| |
