Reliability and performance of a fiber optic link largely depends on the quality of interconnects. Contaminated connectors can cause the mating surfaces to separate leading to high insertion loss and back-reflection. Furthermore, some dirt particles can even scratch or dig into the glass causing permanent damage to the end-face of the connector. Therefore, inspection of fiber optic connectors should be performed whenever a connection is to be made.

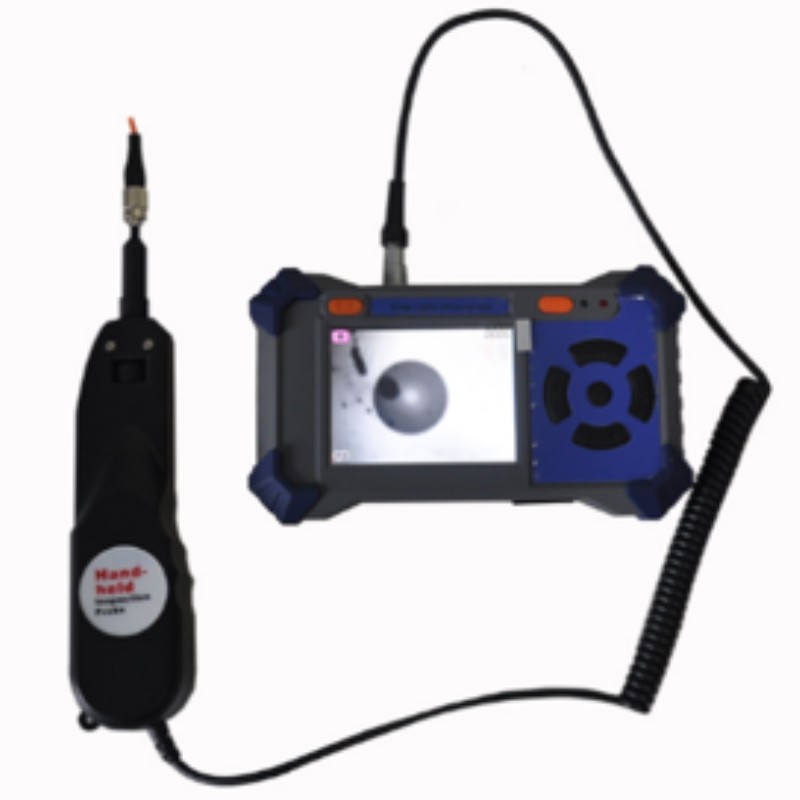

JW5009 is a handheld microscope specifically designed for fiber optic connector end face inspection.

Function

* FC/SC/ST/E2000/LC/MU/MPO compatible

* 3.5-inch TFT display

* Up to 250x overall magnification

* 4x digital zoom

* SD card storage up to 8G

* Snapshot, video recording and playback

* PC plug-and-play

Specification
