| 技术规格 | Specification | 型号 Model |

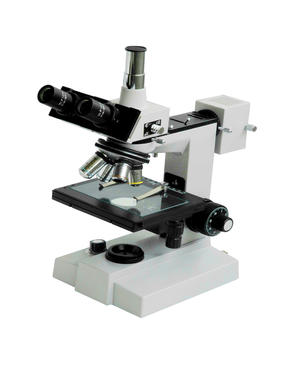

| XJP-H209D |
| 镜座 Viewing Body | 双目镜座 | 30°倾斜瞳距调节范围：55mm～75mm | Binocular Body | 30°Incline, Interpupillary Adjustable Distance: 55mm～75mm |
|
| 三目镜座 | Trinocular Body | ● |
| 目镜 Eyepiece | WF10×(视场Viewing Field Diameter:ø18mm) | WF16×(视场Viewing Field Diameter:ø11mm) | ● |
| 金相平场物镜(无盖玻片) Plain-field achromatic objective (without overglass) | 4×/NA0.1、10×/NA0.25、40×(s)/NA0.65、63×(s)/NA.0.85 | ● |
| 机械载物台 Mechanical stage | 载物台尺寸: 160mm×130mm移动范围: 76mm×50mm游标格值: 0.1mm | Size: 160mm×130mm Moving range: 76mm×50mm Vernier: 0.1mm | ● |
| 载物台尺寸: 140mm×140mm移动范围: 70mm×50mm游标格值: 0.1mm | Size: 140mm×140mm Moving range: 70mm×50mm Vernier: 0.1mm |
|
| 转换器 Nosepiece | 滚珠式四孔转换器 | Four Holes Nosepiece Of Ball Bearing | ● |
| 调焦 Focusing | 同轴式粗微动调焦机构调焦范围e:10mm微动格值:0.002mm | Coaxial Coarse And Fine Focusing Adjustment Focusing Range:10mm Division of Fine Focus Adjustment:0.002mm | ● |
| 落射光照明器 EPI-Illumination | 落射光110V、220V/6V 20W卤素灯泡,光源亮度可调.滤色片 (淡蓝、淡绿) | 110V、220V/6V 20W halogen lamp with adjustable brightness, Filter(light blue、light green) | ● |
| 选购附件 Optional Accessories | 摄影装置、彩色显微电视装置、数码显微摄影装置、金相平场物镜20×、100×(s, oil)平场目镜: 12.5×/Ø15、20X/Ø11，可选配透射光源6V 20W | Photo Unit、Color Micro-TV Unit、Digital Micro-Photo Unit、Metallurgical Plain-field Objective: 20×、100×(s, oil)Plain-field Eyepiece: 12.5×/Ø15、20X/Ø11，Transmitted light source 6V 20W |
