GENERALDESCRIPTION

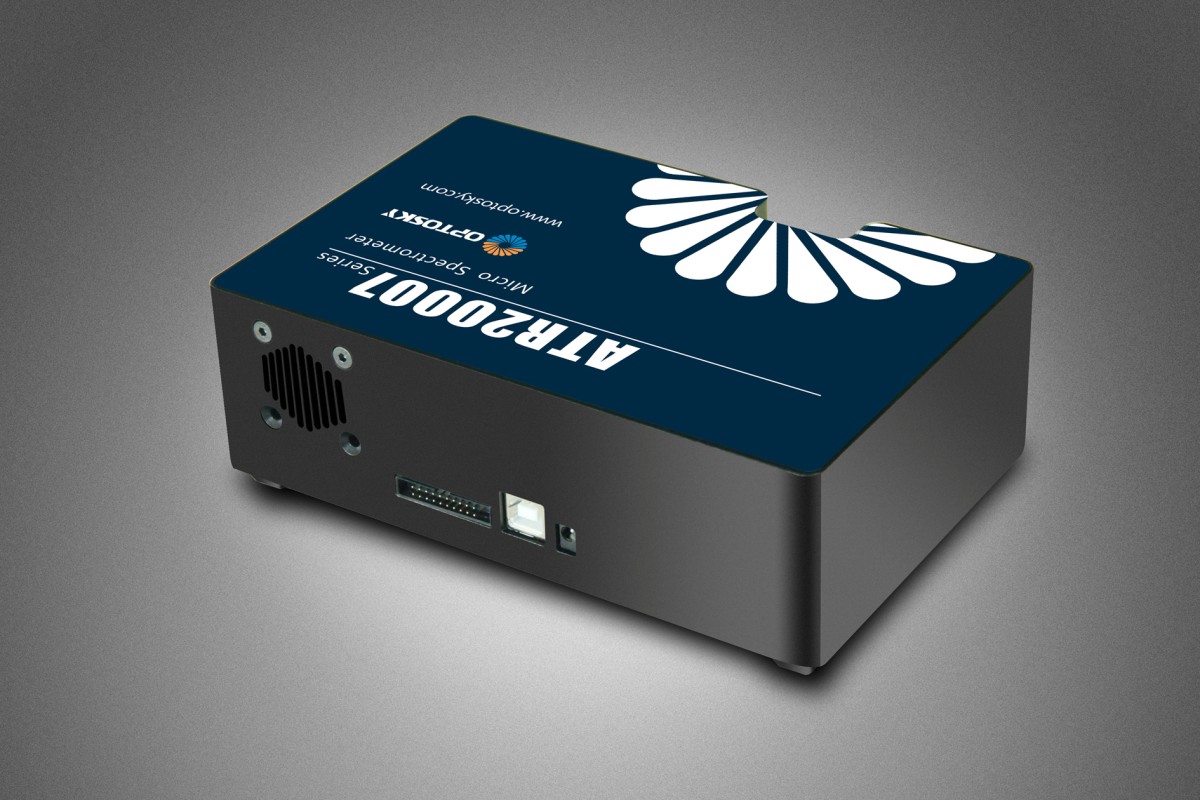

ATR20007Micro spectrometer is a high resolution spectrometer with a TEC cooling CCDdetector. It is suitable for process monitor and field detection owing itsperfect thermo reliability and anti-sweat design. ATR20007 micro spectrometercan be used for Raman spectra detection combining with optosky’s Raman probeand 785nm narrow line laser. Combined it with the integrating sphere and the halogentungstenlamp, thetransmitted and the reflectance spectra can be easily gotten.

FEATURES

ØF/4 crossedSymmetricalCzerny-Turner

ØOptical resolution: 0.5 nm for 50μm slit

ØSpectral range: 800 nm - 980 nm

ØOptical interface: SMA 905

Ølinear CCD with TEC cooling

ØA/D converter: 16 bit 500 kHz

ØInterface: USB 2.0

ØTrigger mode: TTL

ØSealing to anti-sweat

ØPerfect thermo reliability

APPLICATIONS

ØRaman spectrometer

ØReflected/transmitted spectra detection

ØFluorescence spectra detection
