| Specifications for NanoPump (Single Pump) |
| Catalog No. | NanoPump-30 | NanoPump-20 | NanoPump-16 |
| Max. Flow Rate | 30 L/hr | 20 L/hr | 16 L/hr |
| Min. Sample Size | 80 mL | 60 mL | 50 mL |
| Max. Pressure | 2500 psi | 2500 psi | 2500 psi |
| Dimensions | 70 × 36 × 30 cm | 70 × 36 × 30 cm | 70 × 36 × 30 cm |
| Weight | 40 kg | 35 kg | 35 kg |
| Max. Temp. | 80 °C (176 °F) |
| Power | 220 V |
| Cleaning | Flush to clean |
| Application | Sanitary pump for liquids in pharmaceutical or biological applications |
| Features | Pressure and temperature transmitters are installed for real-time monitoring |
|
| Specifications for UltraPump |
| Catalog No. | UltraPump-60 | UltraPump-100 |
| Max. Flow Rate | 60 L/hr | 100 L/hr |
| Min. Sample Size | 150 mL | 200 mL |
| Max. Pressure | 3500 psi | 2500 psi |
| Dimensions | 155 × 70 × 50 cm | 155 × 70 × 50 cm |
| Weight | 200 kg | 200 kg |
| Max. Temp. | 80 °C (176 °F) |
| Power | 380 V or 480 V, 50/60 Hz |
| Cleaning | Flush to clean |
| Application | Sanitary pump for liquids in pharmaceutical or biological applications |
| Features | Pressure and temperature transmitters are installed for real-time monitoring |
|
| Specifications for PilotPump (Pilot Dual Pumps) |
| Catalog No. | PilotPump-120 | PilotPump-200 |
| Max. Flow Rate | 120 L/hr | 200 L/hr |
| Min. Sample Size | 200 mL | 200 mL |
| Max. Pressure | 3500 psi | 2500 psi |
| Dimensions | 155 × 105 × 63.5 cm | 155 × 105 × 63.5 cm |
| Weight | 350 kg | 350 kg |
| Max. Temp. | 80 °C (176 °F) |
| Power | 380 V or 480 V, 50/60 Hz |
| Cleaning | Flush to clean |
| Application | Sanitary pump for liquids in pharmaceutical or biological applications |
| Features | Pressure and temperature transmitters are installed for real-time monitoring |
|
| Specifications for ProdPump (Prod Dual Pumps) |
| Catalog No. | ProdPump-300 | ProdPump-400 |
| Max. Flow Rate | 300 L/hr | 400 L/hr |
| Min. Sample Size | 400 mL | 500 mL |
| Max. Pressure | 3500 psi | 2500 psi |
| Dimensions | 175 × 100 × 150 cm | 175 × 100 × 150 cm |
| Weight | 800 kg | 800 kg |
| Max. Temp. | 80 °C (176 °F) |
| Power | 380 V or 480 V, 50/60 Hz |
| Cleaning | Flush to clean |
| Application | Sanitary pump for liquids in pharmaceutical or biological applications |
| Features | Pressure and temperature transmitters are installed for real-time monitoring |
|
| Standard Features |

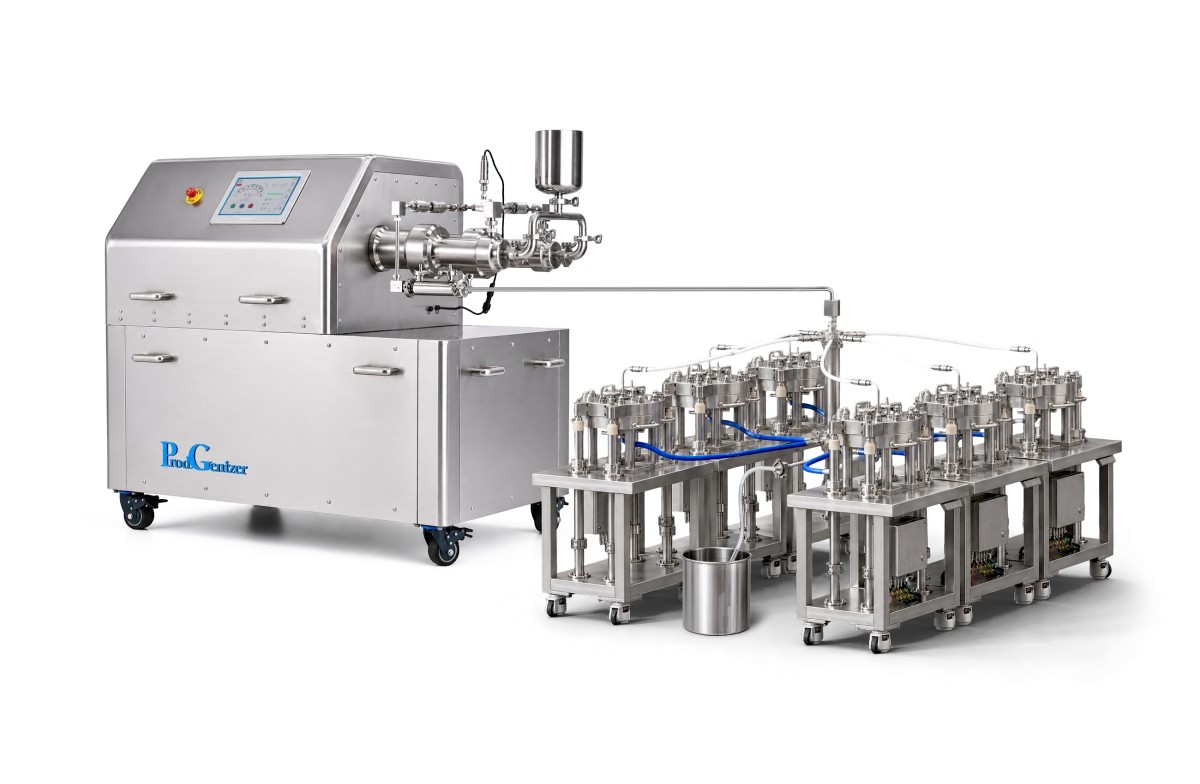

| Parts | Online liposome extruder unit with cooling option |
| Control System | High pressure programming liposome control systems: touch screen, speed control, auto-stop control by pressure or temperature, settable volume control as low as 50mL, display of flow rate and time, overload protection |
| Indicators | Pressure transmitter, temperature Transmitter |
| Inlet Type | 3/8" HIP |
| Outlet Type | 3/4" Tri-Clamp or 1" Tri-Clamp |
| Feed Reservoir | 25 L/50 L Jacketed Vessel, CIP/SIP Optional |
| Collector Reservoir | 25 L/50 L Jacketed Vessel, CIP/SIP Optional |
| Product Material | 316L stainless steel, tungsten carbide, viton, teflon |
| Material Standard | Sanitary grade, FDA, GMP |
| Warranty | 1 year against any manufacturing defects |
|
