Features:

• Observation window on case lid.
• Sample inlet accepts 1/4" (0.635 cm) OD tubing.
• Case designed for rugged outdoor use.
• CE certified.

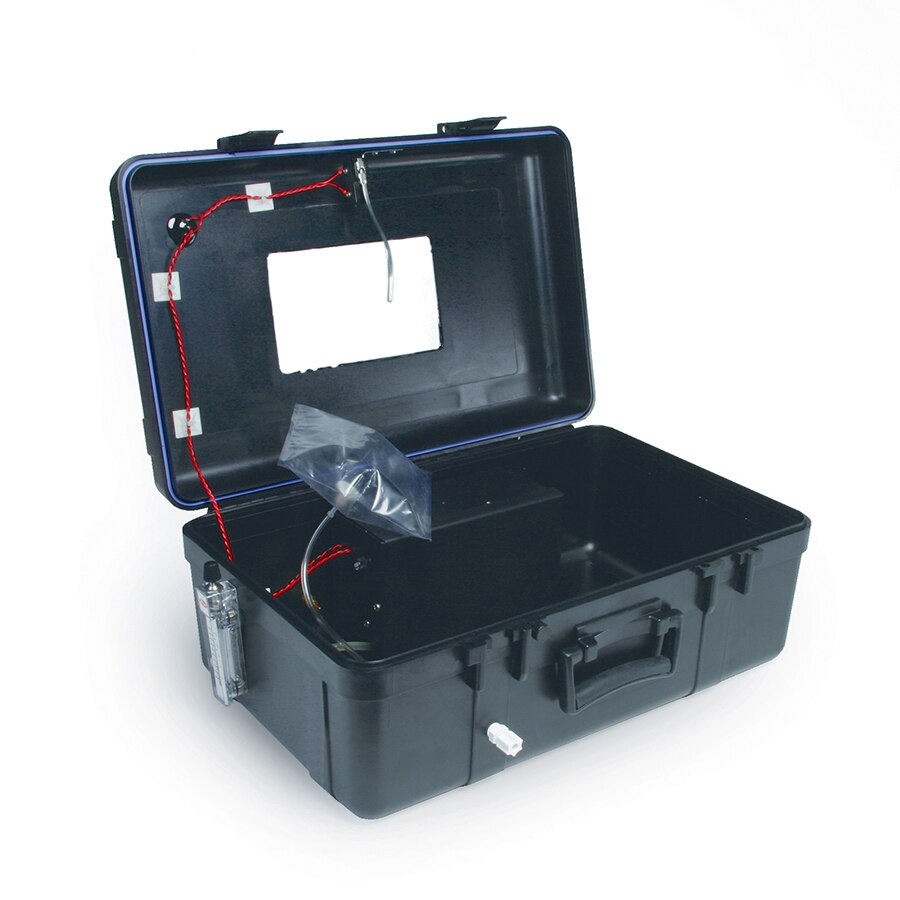

The model 1062 vacuum bag sampler provides fast sampling with zero cross-contamination. A vacuum created in the box draws air into the sampling bag without drawing it through the vacuum pump first, as is the case with standard air sampling pumps, thereby preventing contamination of the sample. This bag sampler can fill a 10 L bag in two minutes with an automatic shutoff switch, which stops the sample bag from overfilling. The filling rate is adjusted with a vent rotometer valve. An external battery-recharging port enables continuous operation with battery charger. In addition, the quick exhaust valve allows for fast removal of the sampling bag. The sampler comes with a universal power adaptor/charger, battery, instruction manual, and 1-year limited warranty.

Specifications
Sampling Bag: 1 bag up to 10 L size
Running Time: 8 hours
Flow Rate (Fill Rate): 1-5 L/min
Power Requirements: 12 V battery, 4.5 amp
Charge Time: 9 hours
Dimensions: 9" x 14.6" x 21.7" (22.9 cm x 36.8 cm x 55.2 cm)
Weight: 17 lb (7.7 kg)
Direct Vacuum = 27" of water (2" Hg)/68.6 cm of water (5 cm Hg)

特点与优势

• Fast bag sampling without sample passing through pump.
• Bag capacity up to 10 L.

产品规格

货号.	22118
产品名	1062型真空袋采样器，适用于1-10升气体采样袋
认证/合规	CE
单位	单个
