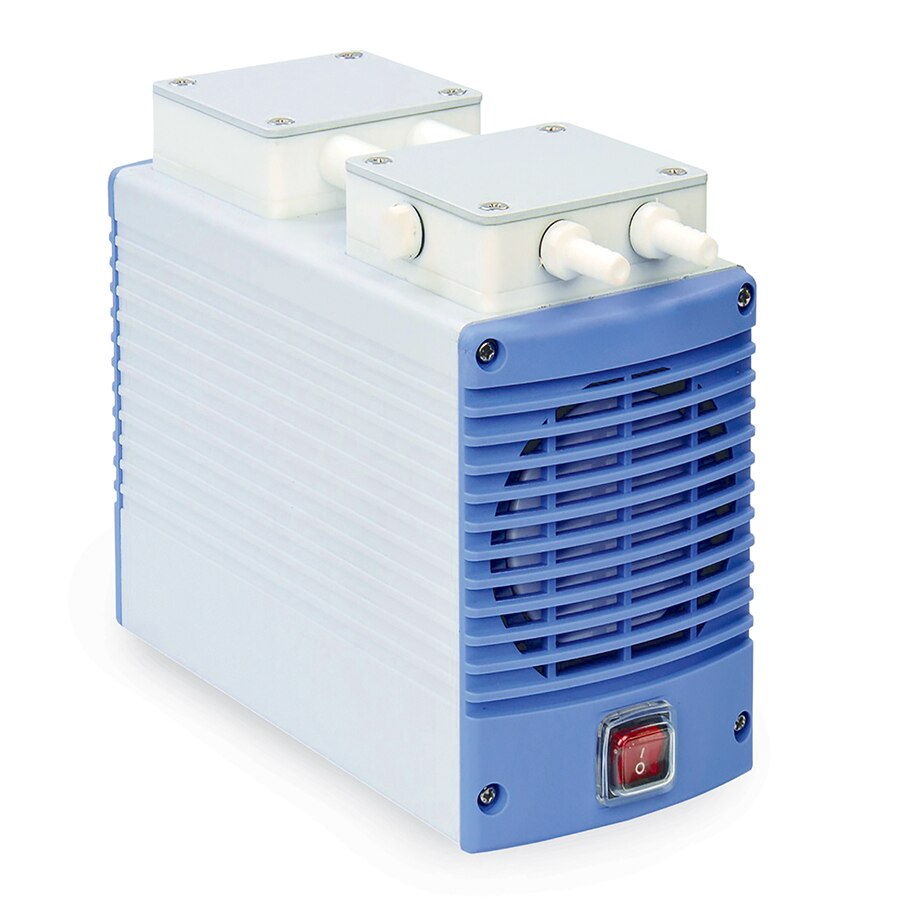

Chemker 400 PTFE真空泵,38 L/min,AC110 V,60 Hz
产品介绍
Specifications for Chemker Vacuum Pumps
|
Model
|
Chemker 300
|
Chemker 400
|
Chemker 410
|
|
Voltage
|
110 V, 60 Hz
|
220 V, 50 Hz
|
110 V, 60 Hz
|
220 V, 50 Hz
|
110 V, 60 Hz
|
220 V, 50 Hz
|
|
Max. power (W)
|
70
|
60
|
90
|
90
|
90
|
90
|
|
Max. current (A)
|
0.8
|
0.32
|
1.1
|
0.5
|
1.2
|
0.5
|
|
Max. vacuum
|
-670 mm Hg
|
-670 mm Hg
|
-750 mm Hg
|
|
Max. flow rate
|
20 L/min
|
18 L/min
|
38 L/min
|
33 L/min
|
20 L/min
|
18 L/min
|
|
Motor rotation
|
1700 rpm
|
1450 rpm
|
1700 rpm
|
1450 rpm
|
1700 rpm
|
1450 rpm
|
|
Horse power
|
1/8 HP
|
1/6 HP
|
1/6 HP
|
|
Noise level
|
50 dB
|
50 dB
|
50 dB
|
|
Port thread
|
5/16 inch (8 mm)
|
5/16 inch (8 mm)
|
5/16 inch (8 mm)
|
|
Net weight
|
5.0 kg
|
7.0 kg
|
7.0 kg
|
|
Dimensions (L x W x H)
|
20.3 x 11.2 x 20.9 cm
|
26.7 x 11.2 x 18.1 cm
|
26.2 x 14.8 x 18.2 cm
|
特点与优势
- PTFE wetted parts are highly resistant to corrosive gases.
- Diaphragm-based pump is low maintenance and virtually pollution free.
- Quiet, low-vibration units keep disturbances to a minimum.
- Built-in thermal protector automatically shuts off pump if it overheats and then restarts it once the unit is cool.
- International CE and CSA certification.
- Applications include vacuum filtration, gel electrophoresis, solid-phase extraction, solvent purification, and general use. (Not intended to evacuate air canisters.)
产品规格
| 货号. |
27428 |
| 产品名 |
Chemker 400 PTFE真空泵，38 L/min，AC110 V，60 Hz |
| 电压 |
AC110 V, 60 Hz |
| 流量 |
38 L/min |
| 单位 |
单个 |
| |
