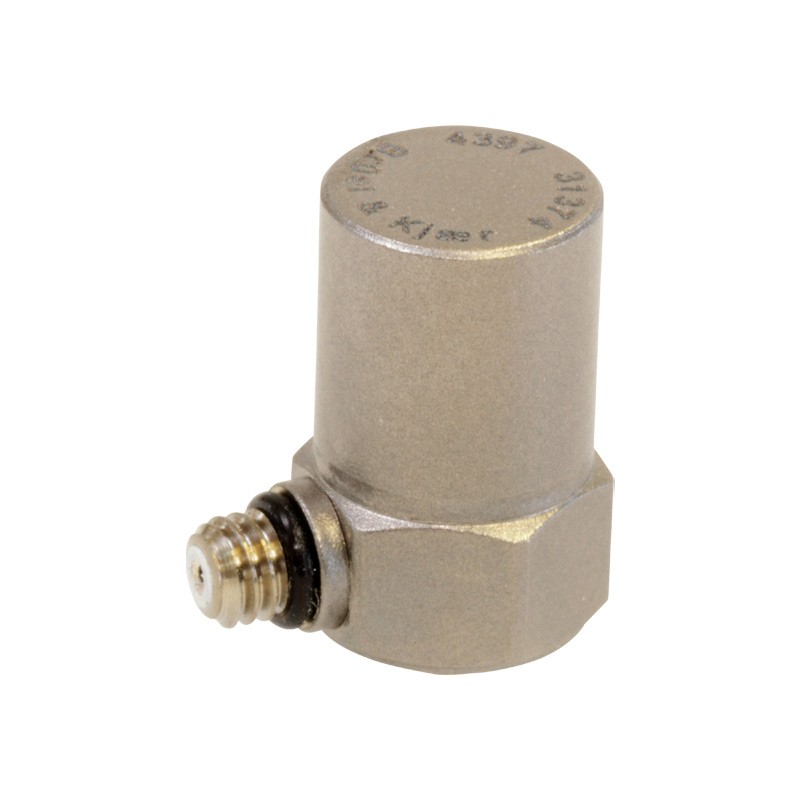

4397-A 微型压电式CCLD加速计
4394型与4397-A型是压电式DeltaShear® Unigain 加速计，配有侧边连接器。此两款传感器采用M3连接方式，并可通过M3钢螺栓安装到测量物体上。两款产品的区别在于4394型具有绝缘瓷基座。
使用场景
技术参数
| 型号 | 4397-A |
| Freq. range | 1 – 25000 Hz |
Temperature | -50 – 125 ℃ |
Weight | 2.4 gram |
Sensitivity | 1 mV/ms^-2 |
Residual Noise Level in Spec Freq Range (rms) | 1500 µg |
| Maximum Operational Level (peak) | 500 g |
Connector | M3 |
Mounting | M3 or Adhesive |
| Accessory Included | Optional AO 1381 |
Clip/Stud/Screw included | DB 0757 |
Output | CCLD |
Unigain | No |
Triaxial | No |
TEDS | No |
Applications | Miniature |
Resonance frequency | 53 kHz |
| Maximum Shock Level (± peak) | 10000 g |
