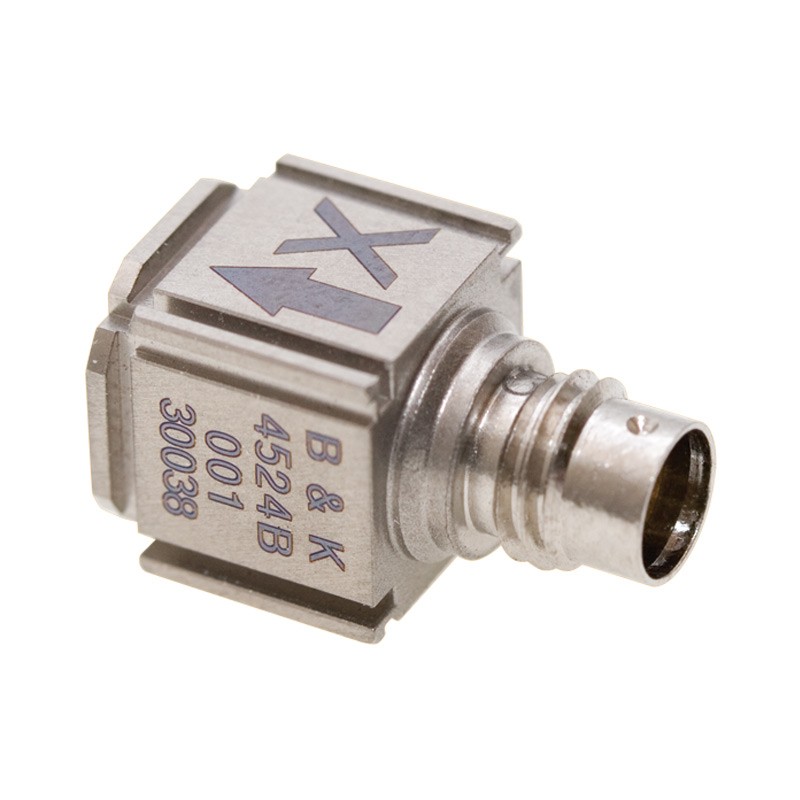

4524-B-001 立方形三轴 CCLD 加速计
4524型和4524-B型都是轻量化的三轴压电式正交剪切式加速度计，各有三个独立的输出，可在三个相互垂直的方向上同时进行测量。4524型和4524-B型都有4针接头。
使用场景
结构分析测量
多通道模态分析
针对汽车车身与动力传动系的模态测量
技术参数
| 型号 | 4524-B-001 |
| Freq. range | 0.25 – 3000 Hz |
| Temperature | -54 – 100 ℃ |
Weight | 4.4 gram |
| Sensitivity | 10 mV/g |
| Residual Noise Level in Spec Freq Range (rms) | 500 µg |
Maximum Operational Level (peak) | 500 g |
Connector | 4-pin |
Mounting | Clip Adhesive |
| Accessory Included | None |
Clip/Stud/Screw included | Mounting Clip |
Output | CCLD |
Unigain | No |
Triaxial | Yes |
TEDS | Yes |
Applications | Modal, Human Vibration, Vibration Test |
Unit | mV |
Resonance frequency | 9 kHz |
| Maximum Shock Level (± peak) | 5000 g |
